  • All Electric!
  • 240V, Single Phase
  • 240V or 480V 3PH (Special Order)
  • Fully Automatic Continuous Flow
  • Around-the-Clock Roasting
  • Empty Supply Automatic Shutdown

DESIGN FEATURES:


  • Auger Overload Protection
  • Automatic Under Heat and Overheat Protection
  • Quality Components
  • Heavy Gauge Steel
  • Durable Powder Coat Finish

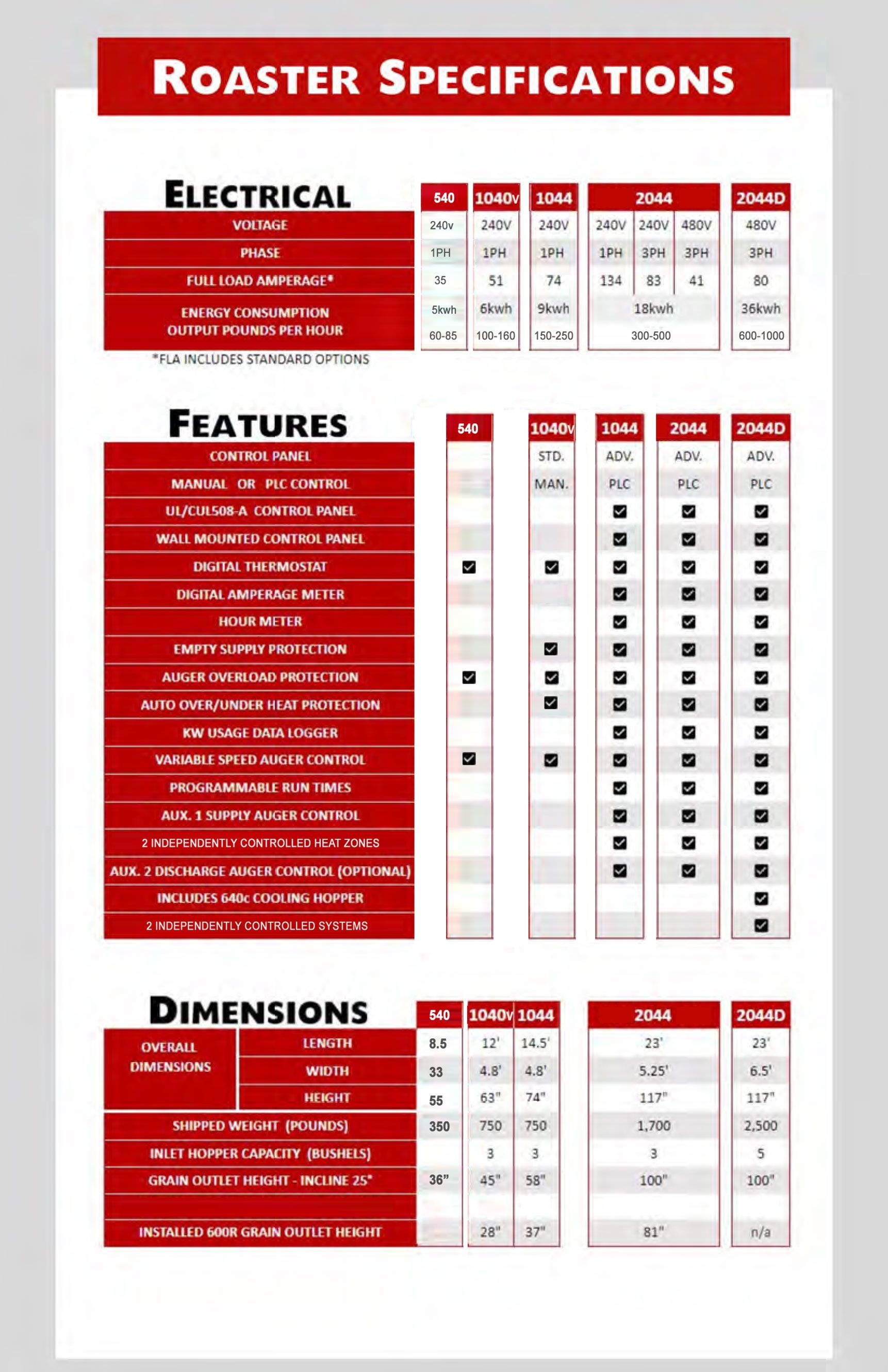

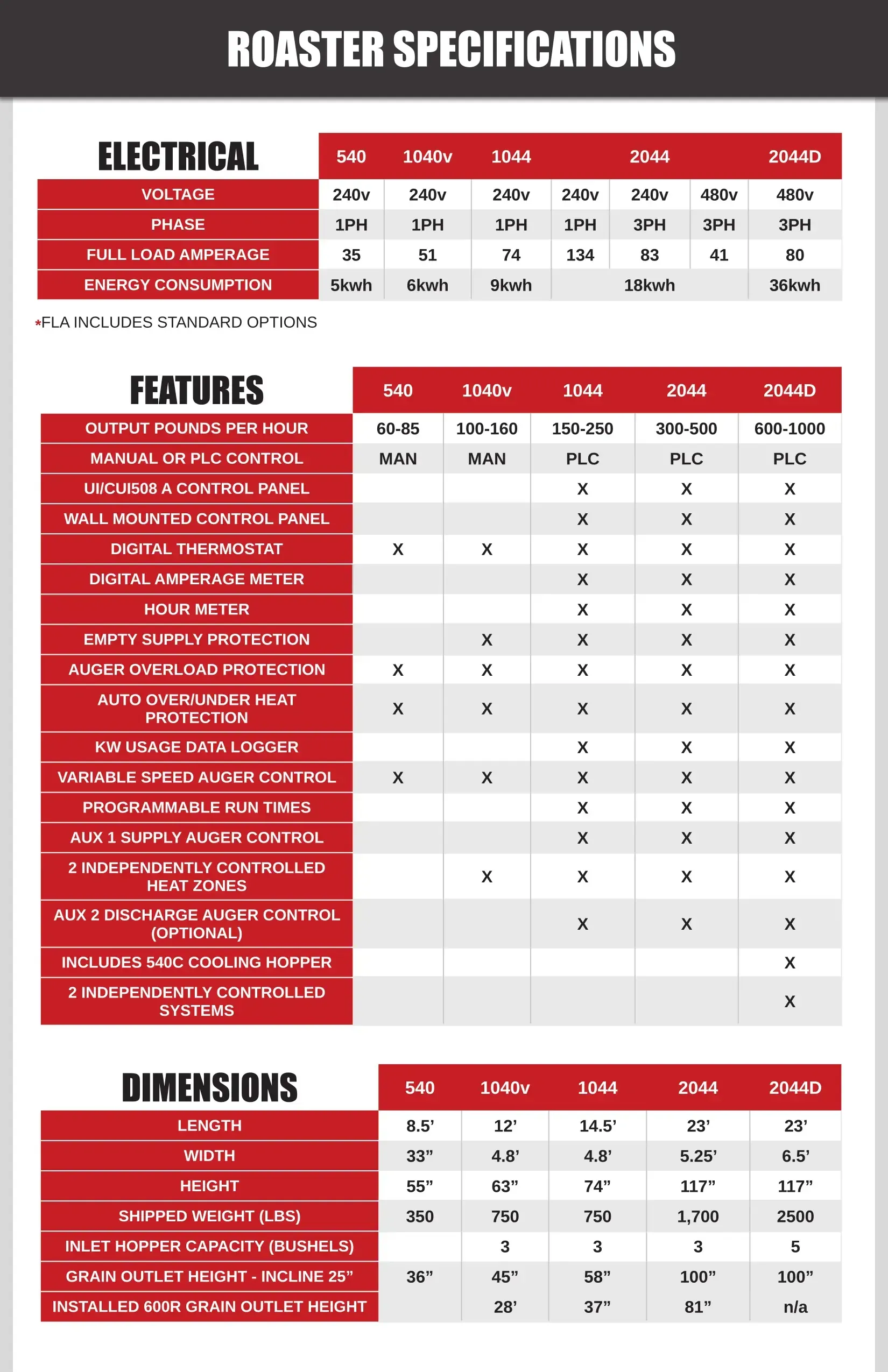

Roaster Specifications

Electrical 540 1040v 1044 2044 2044D
Voltage 240v 240v 240v 240v 240v 480v 480v
Phase 1PH 1PH 1PH 1PH 3PH 3PH 3PH
Full Load Amperage 35 51 74 134 83 41 80
Energy Consumption 5kwh 6kwh 9kwh 18kwh 36kwh

* FLA includes standard options

Features 540 1040v 1044 2044 2044D
Output Pounds Per Hour 60-85 100-160 150-250 300-500 600-1000
Manual or PLC Control MAN MAN PLC PLC PLC
UI/CUI508 A Control Panel X X X
Wall Mounted Control Panel X X X
Digital Thermostat X X X X X
Digital Amperage Meter X X X
Hour Meter X X X
Empty Supply Protection X X X X
Auger Overload Protection X X X X X
Auto Over/Under Heat Protection X X X X X
KW Usage Data Logger X X X
Variable Speed Auger Control X X X X X
Programmable Run Times X X X
Aux 1 Supply Auger Control X X X
2 Independently Controlled Heat Zones X X X X
Aux 2 Discharge Auger Control (Optional) X X X
Includes 540C Cooling Hopper X
2 Independently Controlled Systems X
Dimensions 540 1040v 1044 2044 2044D
Length 8.5’ 12’ 14.5’ 23’ 23’
Width 33” 4.8’ 4.8’ 5.25’ 6.5’
Height 55” 63” 74” 117” 117”
Shipped Weight (lbs) 350 750 750 1,700 2500
Inlet Hopper Capacity (Bushels) 3 3 3 5
Grain Outlet Height - Incline 25” 36” 45” 58” 100” 100”
Installed 600R Grain Outlet Height 28’ 37” 81” n/a

Take Control of your Feed Rations by Roasting your Own Grains!

How it works

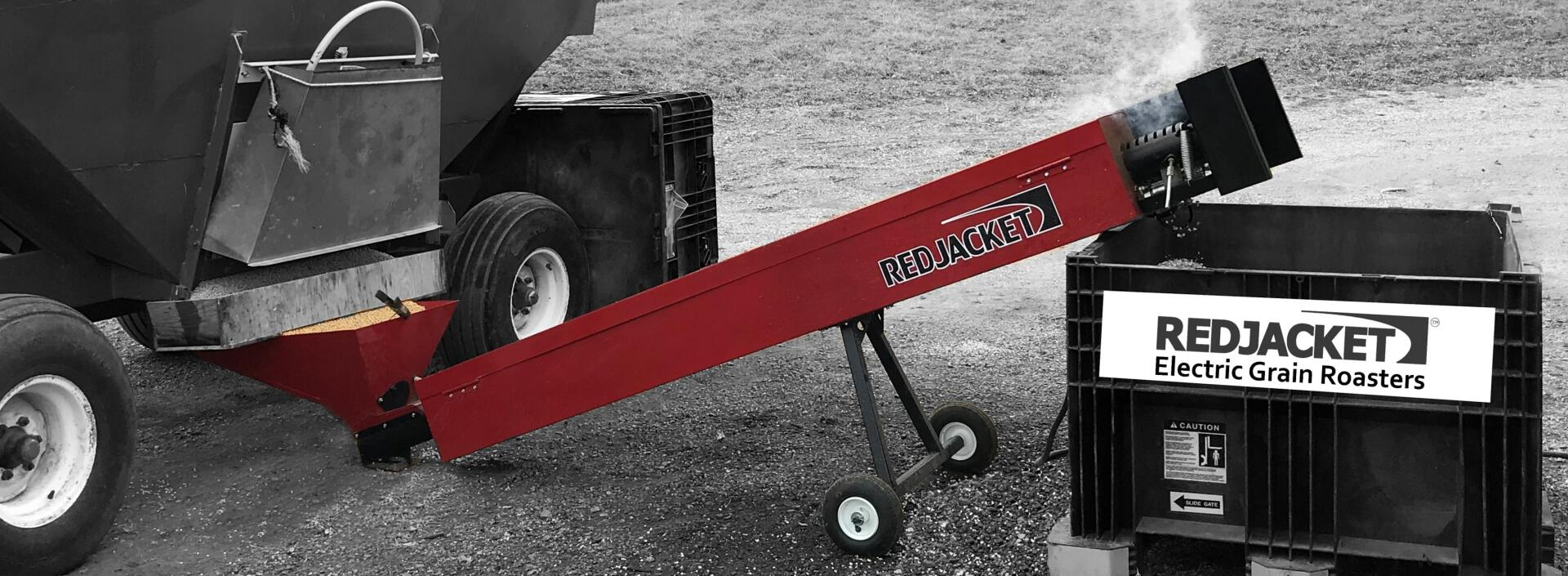

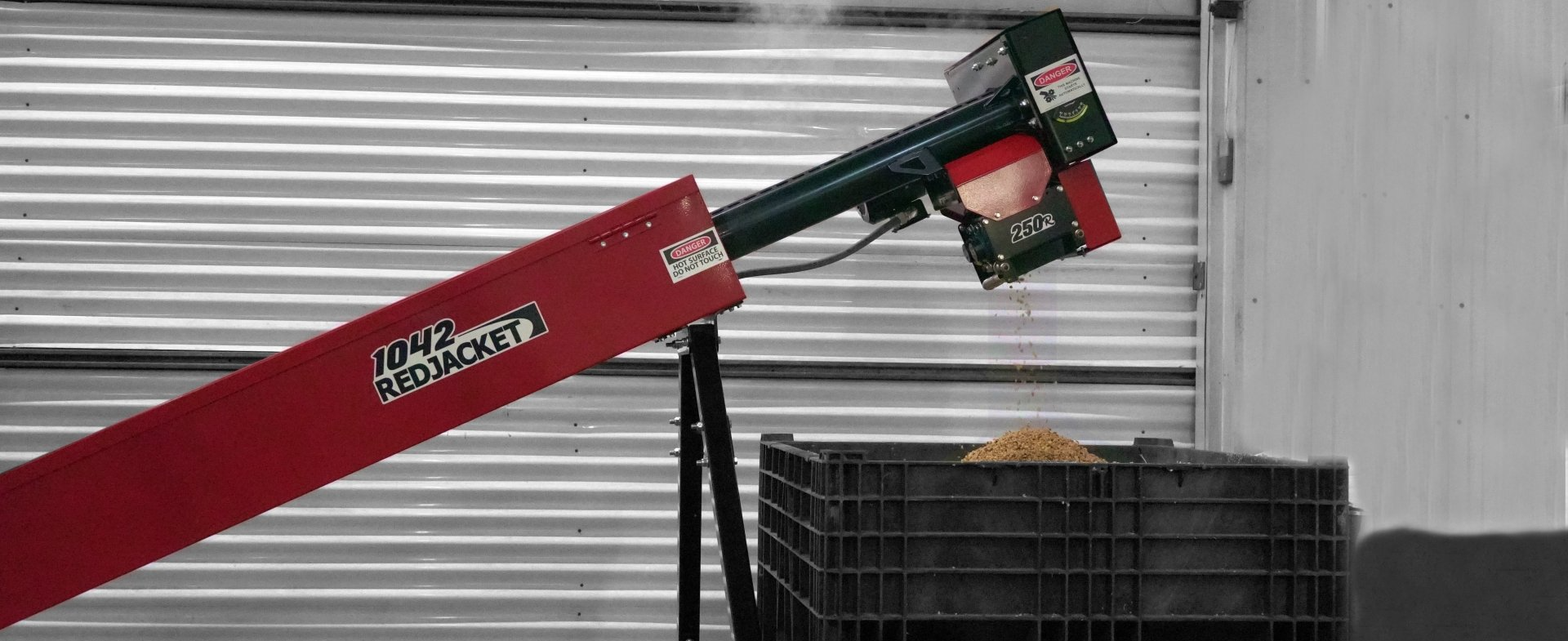

We use a series of electrical heater bands attached to an auger tube as the oven. This efficiently heats and roasts the grain as it travels up the auger. The grain enters through the auger in the bottom of the hopper and roasted grain and steam exit out the top end of the unit. The grain is in the auger oven for about 5 minutes from bottom to top...


It's a very simple, effective & reliable design.


As far as temperatures for soybeans...  The "oven" temperature runs between 525°-575°F to reach an ideal soybean roast temperature of 280°-300°F. The roasters are highly adjustable and can be used for other grains as well. Corn for instance needs to be set at a higher temperature and that is easily achieved with the digital thermostats.

Simple & Efficient Design

for Easy Operation & Fast Return on Your Investment!
